Voltage Of Capacitors In Series. When a number of capacitors are connected in series, the voltage applied across the capacitors is 'v'. However two 100k to 1m resistors are also necessary.
Finding voltage across capacitor in series and parallel from electronics.stackexchange.com
In a series circuit, the total voltage drop equals the applied voltage, and the current through every element is the same. Using v = q/c, this indicates that the smallest capacitors should have the highest voltage. If we allow 400v across each cap and total voltage will not exceed 15kv.
The Appropriate Resistor To Use Across Each Capacitor Is.
However, when i did the same experiment with four (4) uxcell aluminum electrolytic capacitors 22uf 100v the results are different. Rearranging the general formula for capacitance, we obtain the expression for the voltage over the whole circuit: However, when the series capacitor values are different, the larger value capacitor will charge itself to a lower voltage and the smaller value capacitor to a higher voltage, and in our second example above this was shown to be 3.84 and 8.16 volts respectively.

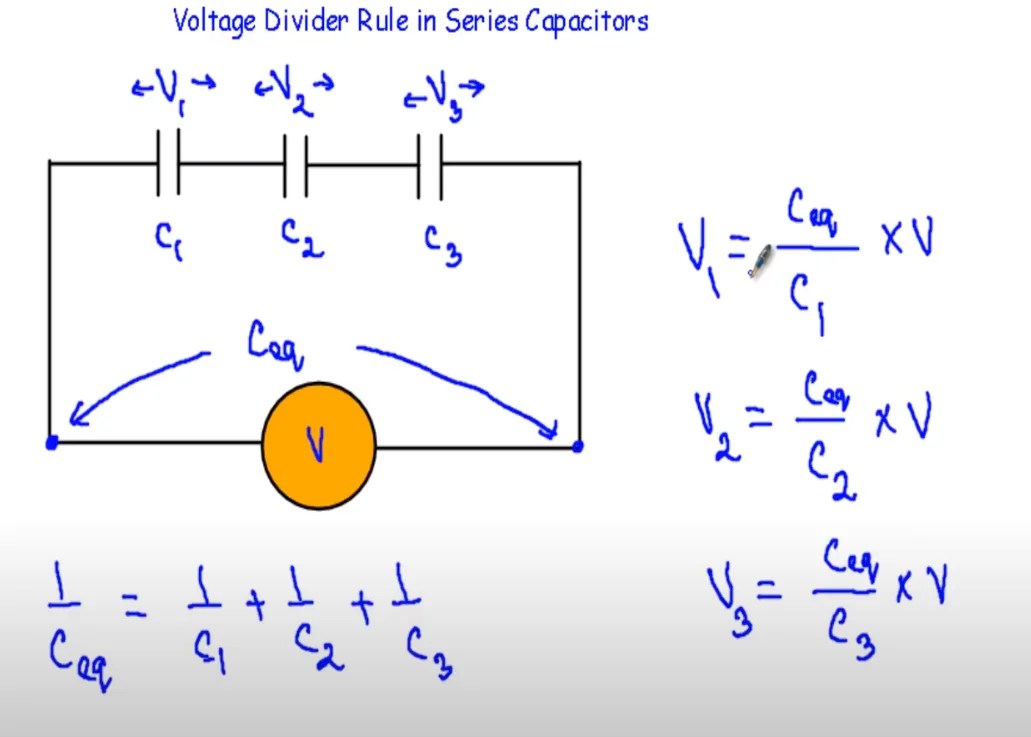

V = V 1 + V 2 + V 3 = 5.455 + 2.727 + 1.818 = 10 V.
How to calculate the voltage (potential difference) across capacitors in series. For two 10v series capacitors the voltage will be 20v. When capacitors are connected in series, the capacitor plates that are closest to the voltage source terminals are charged directly.
The Formula For The Capacitors In Series:
In a series circuit, the total voltage drop equals the applied voltage, and the current through every element is the same. Capacitors in series for voltage. The capacitor plates in between are only charged by the outer plates.
A Parallel Capacitor Circuit Is An Electronic Circuit In Which All The Capacitors Are Connected Side By Side In Different Paths So That The Same.
Bus or tertiary winding of the main transformer. On top of that, once the bank is charged, each capacitors leakage current also causes a *different* voltage across each capacitor. C in uf is the capacitance of each capacitor.
The formula to calculate the total capacitance of the series combination capacitors will be in the same form as that for calculating the resistances for a parallel combination. When a number of capacitors are connected in series, the voltage applied across the capacitors is 'v'. The variance can be quite large for electrolytics.
Voltage Follower Circuit Using Op Amp . It is also commonly known as unity gain opamp amplifier or opamp buffer. These types of circuits provide better load regulation, than a simple zener diode and resistor alone. op amp Stepbystep explanation of how voltage follower from electronics.stackexchange.com A voltage follower circuit has a very high input impedance. Output voltage equivalent to the input voltage. There is no amplification of the voltage.
How To Calculate Voltage Ripple . The meter will only measure the ac component of the signal, the ripple voltage, if present. In order to suppress the output voltage ripple and noise, the most common and simple way is add the capacitor. Calculate VoUT, Icharge, And The Ripple Voltage Fo from www.chegg.com The ripple coefficient, or the ratio of the ripple voltage to the dc output voltage, is commonly used to evaluate the filtering performance of a dc power supply. C = i / 2 x f x vpp. In the above equation, i' rms is the alternating component of load current.
Voltage Divider Schematic . See the voltage divider diagram. With respect to a common point or ground, usually 0v, or it could be across a dual supply, for example ±5v, or ±12v, etc. Voltage Divider Circuit Voltage divider, Circuit diagram from www.pinterest.com.au If the circuit variables are appropriately worked out, the levels of icq and vceq could be virtually completely independent of beta. The required output voltage (v out) can be obtained across the resistor r2. I want to calculate adc values.
