Dva Peak Voltage Adapter. Anyway, i have a cdi peak voltage adapter, sometimes called a dva, made by a company called cdi and supposedly compatible with similar adapters made by mercury for their outboard motors. We dont know when or if this item will be back in stock.
Kit Digital Multimeter + Voltage Peak Reading from www.amazon.com
This is a simple circuit that is quick to put together and. This adapter will simplify the testing of electronic ignition systems, stators, sensors and charging systems. So im thinking this will work for my fluke meter.
A Dva Simple Captures Ac Peak Voltage So You Can Check For Low Voltage Between The Stator Output And The Coil Input So If Its Ac Current Then Its Not Really A Coil Is It, Itd A Transformer
In this video i make up a direct voltage (peak voltage) adapter for testing cdi ignition systems. This is the original direct voltage adapter supplied to several oems for reading peak voltages on cdi ignition systems. Discussion starter · #1 · jul 9, 2013 (edited) there are folks asking about testing cdi, icm and so on, this is what i have put together for testing with a good multimeter (with impedance of 10 meg ohms min.).
We Dont Know When Or If This Item Will Be Back In Stock.
Peak readings will be significantly higher than standard rms ac. Peak readings will be substantially higher than standard or rms ac values and are typically Rmstator voltage peak reading adapter dva adapter for multimeter probes.
28 Rows Dva Readings Should Always Be Taken With Everything Hooked Up.

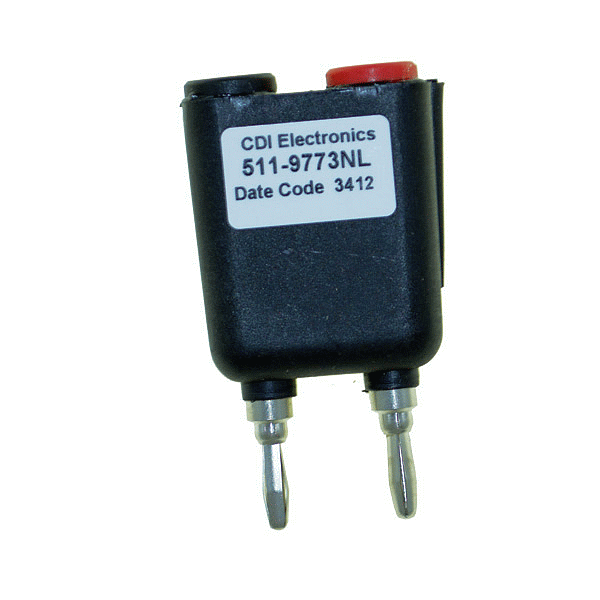

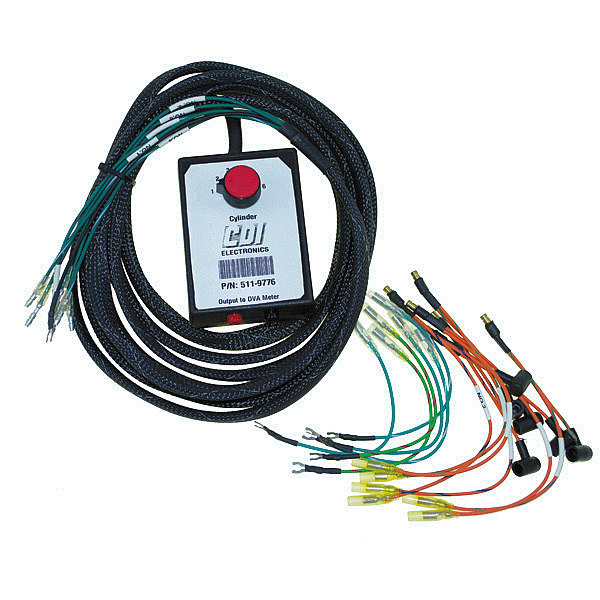

The cdi peak reading voltage adapter is specifically designed to work with shielded digital multimeters. This is why a dva peak volt adaptor is a must have when testing and diagnosing stators. Ships from and sold by racetech electric.
These People Sell Ignition Components For Motorcycles….And They Sell A Meter/Dva Adapter For $58.00.
Dva explained dva stands for direct voltage adapter, which is used to measure peak ac voltage. Any filtering circuit, which is what this is, has a leak down characteristic like 50alive says. A good example of this would be, that the typical rms ac reading of a 50hz uk wall socket is 240v.
But In Reality The Component Could Be Failing Under Load.
Dva readings should always be taken with everything connected with the exception of the stop circuit. Rmstator voltage peak reading adapter dva adapter for multimeter probes. The cdi peak reading voltage adapter is specifically designed to work with shielded digital multimeters.
Voltage Follower Circuit Using Op Amp . It is also commonly known as unity gain opamp amplifier or opamp buffer. These types of circuits provide better load regulation, than a simple zener diode and resistor alone. op amp Stepbystep explanation of how voltage follower from electronics.stackexchange.com A voltage follower circuit has a very high input impedance. Output voltage equivalent to the input voltage. There is no amplification of the voltage.
What Is A High Voltage Divider . A voltage divider is a fundamental circuit in the field of electronics which can produce a portion of its input voltage as an output. Nowadays, high frequency capacitive voltage dividers are used more in display devices and touch screen technologies found in mobile phones and tablets. China Portable Digital 1000 1 High Voltage Divider from whhzdq.en.made-in-china.com A voltage divider can be used to scale down a very high voltage so that it can be measured by a volt meter. The voltage divider can help level the voltage down from a microcontroller (eg. The formula for calculating the output voltage is based on ohms law and is shown below.
Voltage Divider Schematic . See the voltage divider diagram. With respect to a common point or ground, usually 0v, or it could be across a dual supply, for example ±5v, or ±12v, etc. Voltage Divider Circuit Voltage divider, Circuit diagram from www.pinterest.com.au If the circuit variables are appropriately worked out, the levels of icq and vceq could be virtually completely independent of beta. The required output voltage (v out) can be obtained across the resistor r2. I want to calculate adc values.
