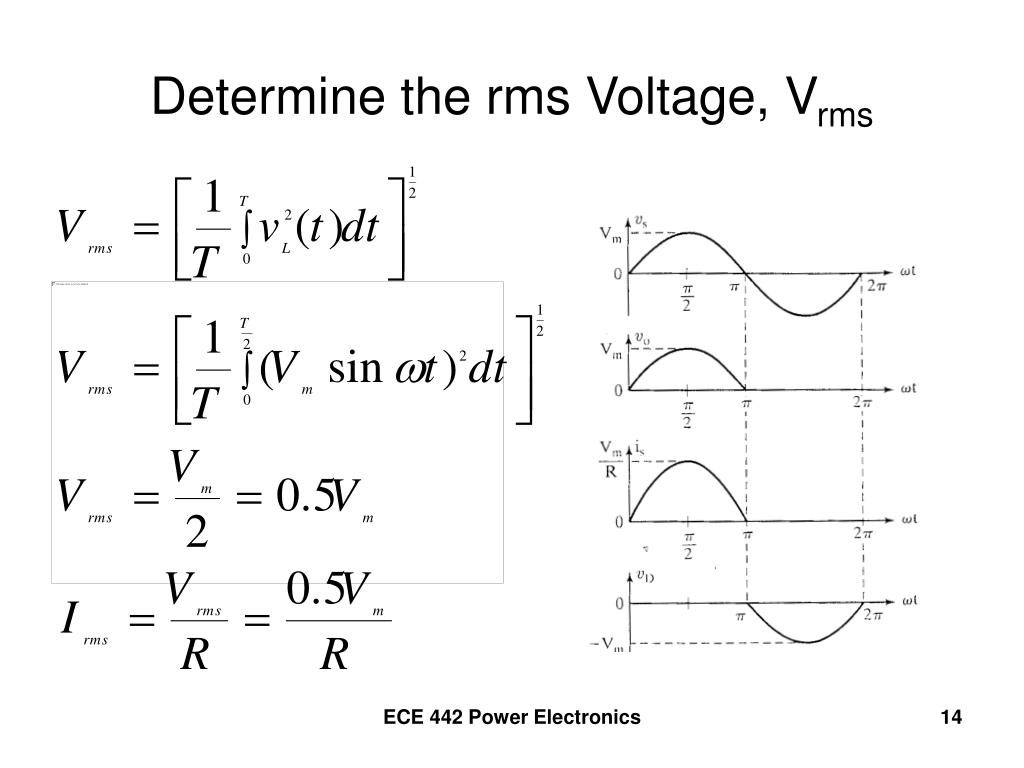

How To Calculate Average Voltage Of Full Wave Rectifier. In this video, the rms and average value of half wave rectifier and the full wave rectifier have been calculated. Wdwd, fullwave.rectifier.en, cc by 3.0 there is a transformer t on the input side.
Answered In the singlephase diode rectifier… bartleby from www.bartleby.com
If we convert the alternating current (ac) sine wave into direct current (dc) wave through rectifiers, then the converted value to the dc is known as the average value of that alternating current sine wave. The efficiency of the rectifier can be defined as the fraction of dc o/p power & the ac i/p power. K f = i rms / i avg = (i m /√2) / (2i m / π) = 1.11.
Full Wave Rectifier Efficiency Calculation:
The average voltage (v av) of a sinusoidal waveform is determined by multiplying the peak voltage value by the constant 0.637, which is two divided by pi (π). Keep in mind that the average voltage value of full ac sine wave is zero because the area covered by poitive half cycles is equal to the. Ripple factor of full wave rectifier.
Full Wave Rectifier Using Two Diode.

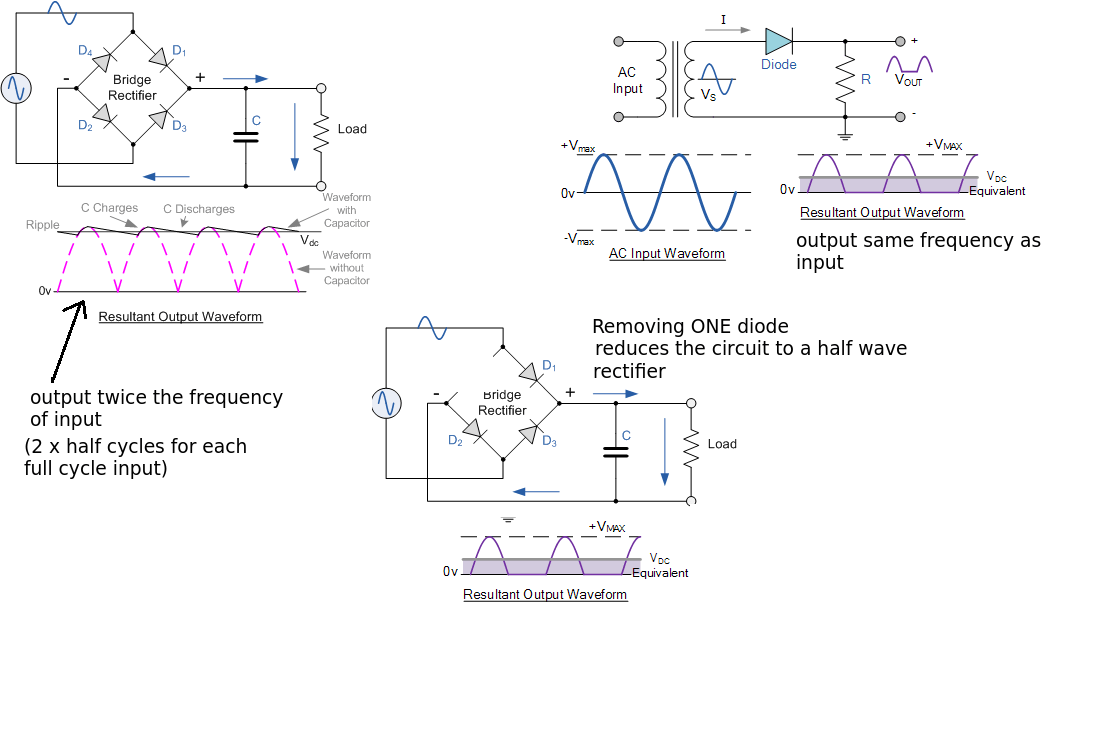

A bridge rectifier with an efficient filter is ideal for any type of general power supply applications like charging a battery, powering a dc device (like a motor, led etc) etc. Full wave rectifier finds uses in the construction of constant dc voltage power supplies, especially in general power supplies. The following topics have been covered in t.
Therefore, It Is Given As;
In this video, the rms and average value of half wave rectifier and the full wave rectifier have been calculated. The average of the output voltage across the resistive load is given by where, the rms value of the output voltage is given by ripple voltage, voltage ripple factor, dc output power, ac input power, efficiency, the voltage and current across the diode d1 are as shown below. An ac input voltage of v = nv o sinwt is applied in the circuit.
Full Wave Rectification Is The Process Of Converting An Ac Signal To A Dc Signal.
If we convert the alternating current (ac) sine wave into direct current (dc) wave through rectifiers, then the converted value to the dc is known as the average value of that alternating current sine wave. V rms =i rms ×r l =im/√2×rl. The only disadvantage of the full wave rectifier is that they need more circuit elements than the half wave rectifier which makes, making it costlier.
The Form Factor Of The Full Wave Rectifier Can Be Calculated By Using The Following Formula:
A full wave rectifier circuit accepts an ac input and produces an output voltage or current which is purely dc or has some specified dc component. Wdwd, fullwave.rectifier.en, cc by 3.0 there is a transformer t on the input side. The efficiency of the rectifier can be defined as the fraction of dc o/p power & the ac i/p power.
