Thevenin Equivalent Of Voltage Divider. Ω r 3 ω and voltage v 1 v. This value of the ideal voltage source is used in thevenin equivalent circuit.
Voltage Dividers Ultimate Electronics Book from ultimateelectronicsbook.com
The thevenin equivalent circuit has an r th = 5 kohms (ohm's law, and same as two identical resistors in parallel). We were able to simplify the circuit by finding the equivalent parallel resistance of the 200 and 300 ohm resistors, and then we noticed that the voltage across those resistors is actually the thevenin voltage. Lets also say i want 1 volt across the emitter resistor r2.
If A Circuit Network Consists Of Some Dependent Sources, The Thevenin Resistance Is Calculated By A Different Method.
Replacing a network by its thevenin equivalent can simplify the analysis of a complex circuit. If this transistor has a beta of 200 then that means a ib = 80ua. If you could then construct a circuit that gave the identical open circuit voltage and the identical short circuit current, then you would have built an equivalent circuit.
V Th = V 1 × R 3 R 4 + R 3.
The thevenin equivalent circuit is a voltage divider: The thevenin equivalent voltage is just vyh=vin x (r2/(r1 + r2). Thevenin equivalent of voltage divider biashelpful?
In This Example, The Thevenin Voltage Is Just The Output Of The Voltage Divider Formed By R 1 And R 3.
The thevenin equivalent circuit has an r th = 5 kohms (ohm's law, and same as two identical resistors in parallel). Then we actually built the thevenin equivalent circuit, and found that it behaved exactly like the original voltage divider when hooked up with a load resistor (although it looks like a messy operation). Ω r 3 ω and voltage v 1 v.

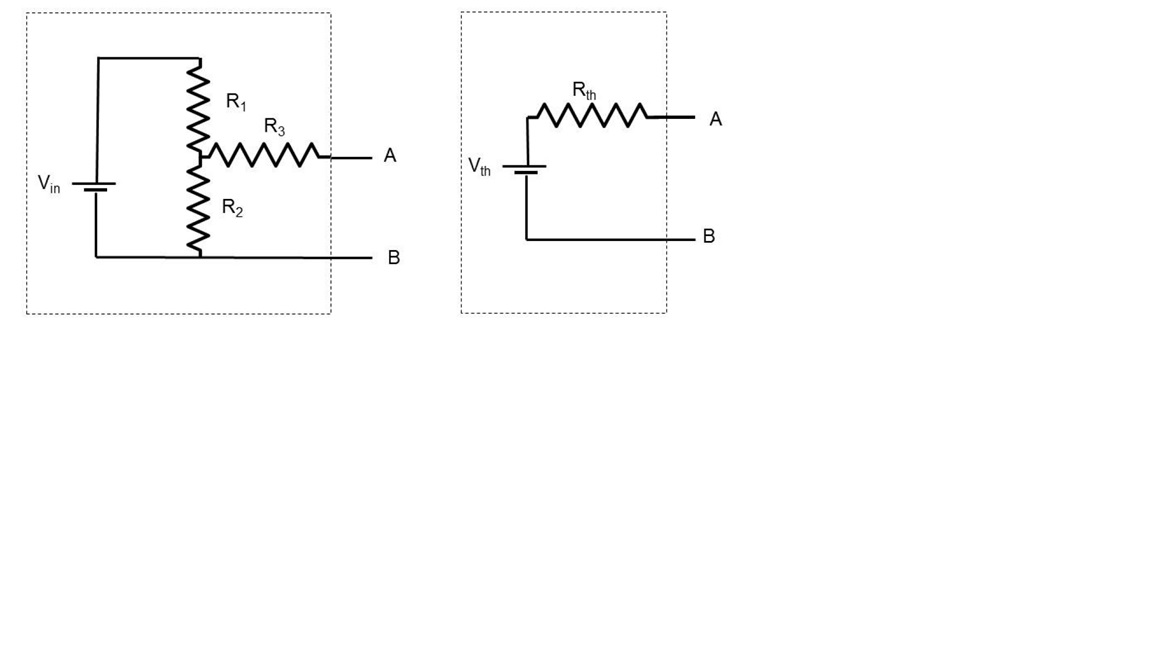

This Shows A Given Circuit And Its Thevenin Equivilant.
Anyway thats my take on it. To find the thevenin equivalent voltage, we put the voltage source back in and find the voltage across the still open spot where we had the resistor. Loaded voltage (r2 off) v 2 = v:
The Equivalent Circuit Consists Of A Constant Voltage Source And A Single Series Resistor Called The Thevenin Voltage And Thevenin Resistance, Respectively.
Simplified circuit of voltage divider bias. But once we have a thevenin equivalent circuit, often the most useful thing to do with it is to connect it to some. Thus, t is easier to calculate the voltages across the load using the voltage divider equation
Voltage Divider Schematic . See the voltage divider diagram. With respect to a common point or ground, usually 0v, or it could be across a dual supply, for example ±5v, or ±12v, etc. Voltage Divider Circuit Voltage divider, Circuit diagram from www.pinterest.com.au If the circuit variables are appropriately worked out, the levels of icq and vceq could be virtually completely independent of beta. The required output voltage (v out) can be obtained across the resistor r2. I want to calculate adc values.
Solid State Voltage Stabilizer Circuit Diagram . The project report titled, "design & construction of a 220v voltage stabilizer", submitted. The design of a simple automatic ac voltage stabilizer which can be used for the abov e purpose. 14+ 3 Relay Stabilizer Circuit Robhosking Diagram from robhosking.com Circuit diagram of automatic boost and buck operation in voltage stabilizer the figure above shows two stage voltage stabilizer which uses two relays ( relay 1 and relay 2) to provide constant ac supply to the load during overvoltage and under voltage conditions. Both parts of circuit diagram of automatic voltage stabilizer is shown below. Pin on high voltage autocut circuit for stabilizer.
Voltage Follower Circuit Using Op Amp . It is also commonly known as unity gain opamp amplifier or opamp buffer. These types of circuits provide better load regulation, than a simple zener diode and resistor alone. op amp Stepbystep explanation of how voltage follower from electronics.stackexchange.com A voltage follower circuit has a very high input impedance. Output voltage equivalent to the input voltage. There is no amplification of the voltage.
